The roll forming tube machine features electronically controlled feeding, ensuring high product quality. The PLC-controlled cutting system guarantees consistent product lengths. One machine can produce products in multiple specifications.
| Machine specification: | Forming thickness)0.4-1.2 galvanized coils |
| Forming speed: | 0-10M/min (EXCLUDING CUTTING STOP TIME) |
| Forming roller: | About 20 stations |
| Main motor power: | 7.5KW |
| Roller material: | 45# forged steel, surface coated with chrome |
| Main shaft material: | 45# steel |
| Main axis dia.: | ￠50mm |

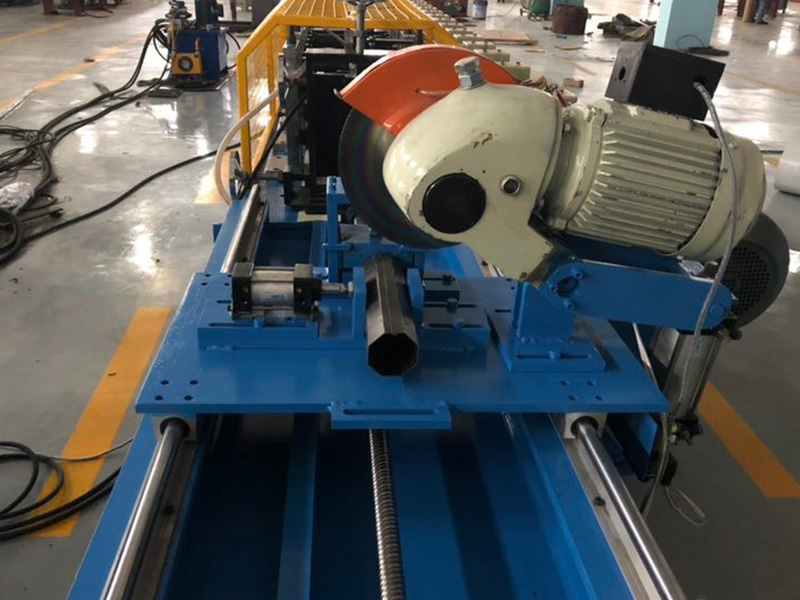

| Cutting method: | Hydraulic powered, cutting after roll forming. |
| Cutting blade material: | Cr12 quenching treatment |
| Electrical controlling system: | Whole line adopted PLC control, cut to length tolerance≤2mm |
| Water cooling system |
Working flow of square pipe roll forming machine
Decoiler(passive/auto)—Punching—square tube roll forming machine—Servo Following Cutting

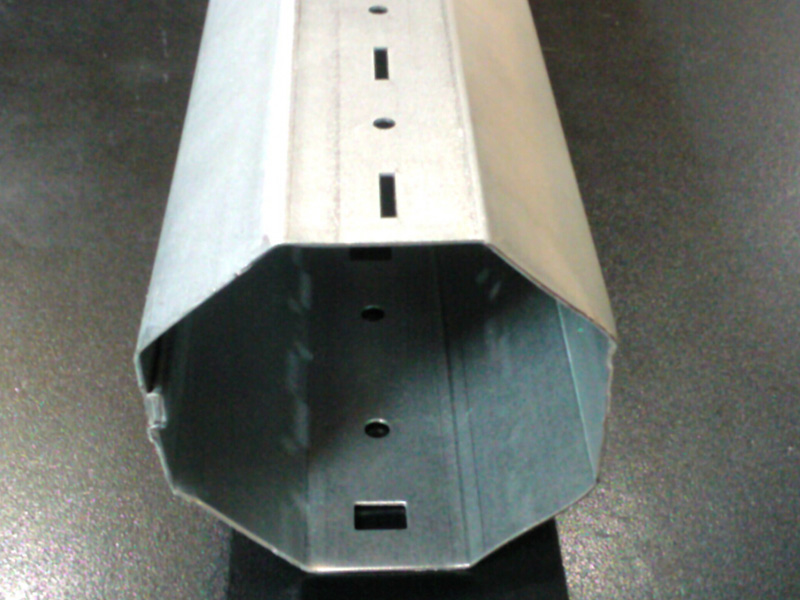

Octagonal tubes are a type of tubing commonly used in construction, machinery, and automotive industries. They can be utilized to build frameworks and supports for structures, manufacture components of mechanical equipment, and serve as supporting structures for automobile chassis. Due to their unique shape, octagonal steel tubes are also frequently used to create various crafts and decorative items.
