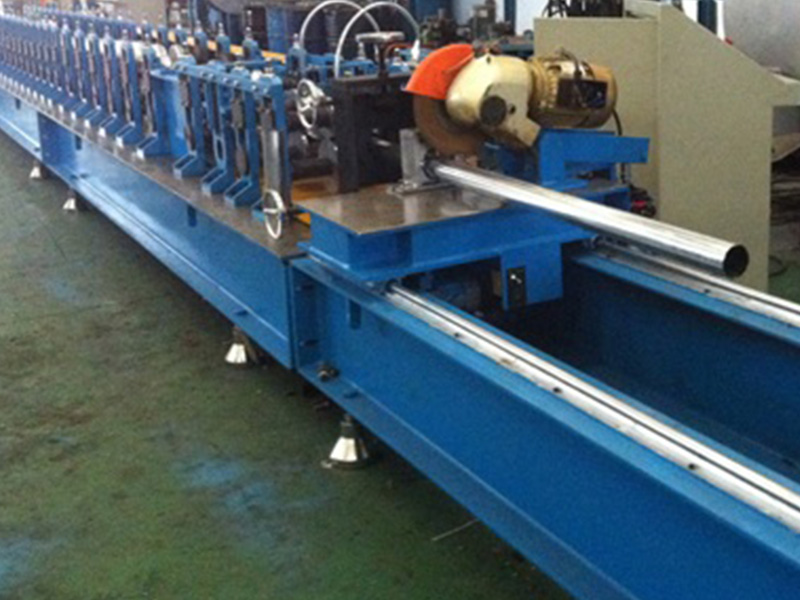

Awning tube roll forming machine

The roll forming machine features electronically controlled feeding for stability, ensuring reliable product quality. With PLC control, cutting is precise, and lengths are consistent without any errors. This highly versatile machine allows for the production of various specifications with ease. It is efficient, convenient, and ideal for meeting diverse production needs.

1.Machine specification: forming thickness 0.9mm galvanized coils

2.Forming speed: 0-10M/min (EXCLUDING CUTTING STOP TIME)

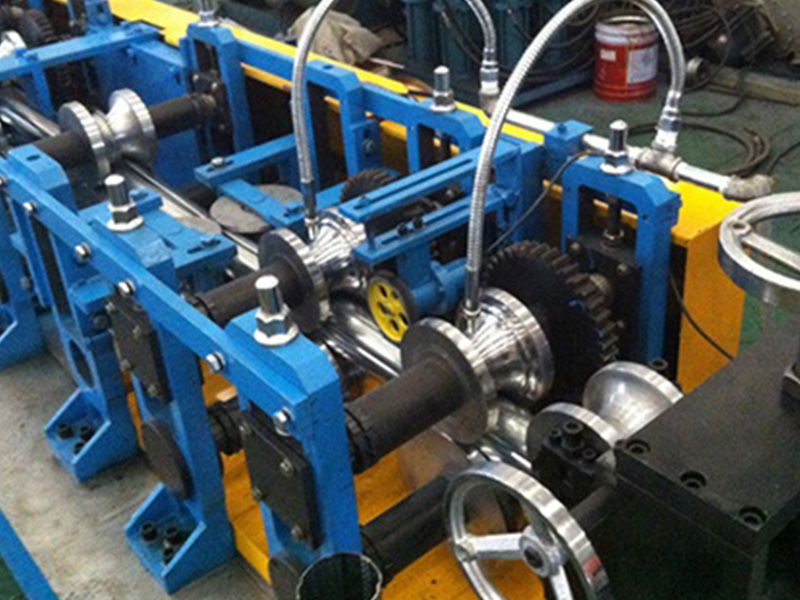

3.Forming roller: about 28 stations

4.Main motor power: 11KW

5.Roller material: 45# forged steel, surface coated with chrome

6.Main shaft material: 45# steel

7.Main axis dia.: ￠60mm

8.Hydraulic cutting pressure: 10-12Mpa

9.Cutting method: hydraulic powered, cutting after roll forming.

10.Cutting blade material: Cr12 quenching treatment

11.Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm

12.Water cooling system

Working flow of tube forming rolls machine

Decoiler(passive/auto)—Punching—roll forming machine—Servo Following Cutting

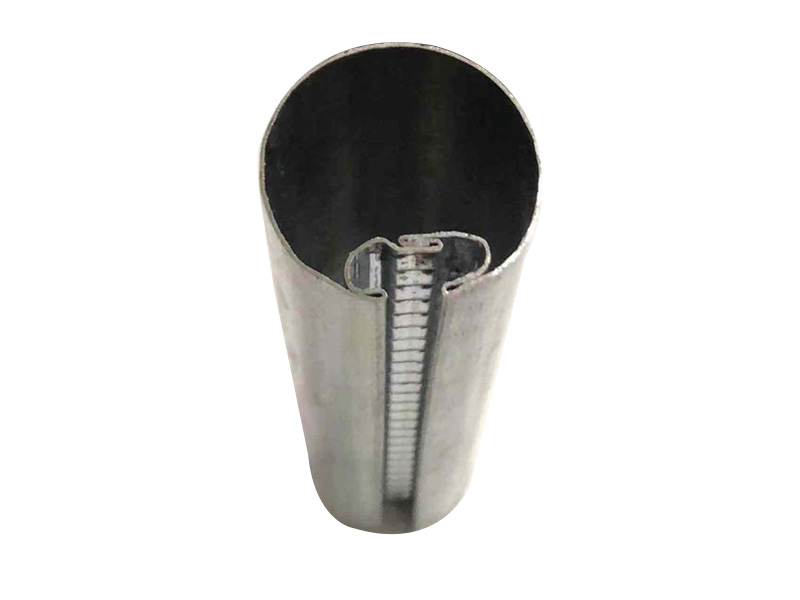

Steel roller tubes for awnings are the most commonly used pipes in awnings or roller shutters, primarily serving as structural supports. These round tubes are typically made of high-strength steel, capable of withstanding significant pressure and tension to ensure the overall stability of the awning. They are connected to the main beams and pillars of the awning, forming a sturdy framework that effectively distributes and transfers loads, ensuring safe use of the awning under various weather conditions.
