The roof sheet making machine is suitable for colored steel plates, aluminum plates, and stainless steel plates. It features a mature structural design, easy operation, variable frequency speed control, computer control, and precise measurement.
Item NO | Description | Offered specification |
1.0 | Roll forming machine | |
1.1 | Rolling speed | 12-15m/min(not include cutting time) |
1.2 | Rolling thickness | 0.3mm-0.8m |
1.3 | Raw material | Color painted coils, Aluminium, Zinc, Galvanized |
1.4 | Main Motor | 7.5KW |
1.6 | Dimension | About 8000×1600×1200(mm) |
1.7 | Effective width | 1000mm |
1.8 | Feeding Coil width | 1219mm |
1.9 | Roller stations | About 24 stations
|
1.10 | Roller material | 45#forge steel, coated with chrome |
1.11 | Shaft diameter | Φ76mm |
1.12 | Transmission | By chain 1.2 inch |
1.13 | Material of chain | 45# forged steel with frequency quenching, 12A |
1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
1.15 | Tolerance | 10m+-1.5mm |
1.16 | Hydraulic station | 4kw |
Working flow of metal roofing machine
Decoiler(passive/auto)—Steel Roofing Machine—Cutting
Main Types of Color Steel Tiles
1，Galvanized Color Steel Tiles
Galvanized color steel tiles are made from hot-dip galvanized sheets that are surface-treated and then coated with colorful paints. These tiles have excellent corrosion resistance, allowing them to withstand harsh environments, making them widely used in coastal areas and humid conditions.
2，Aluminum-Zinc Color Steel Tiles
Aluminum-zinc color steel tiles are produced by adding aluminum, magnesium, and other elements to hot-dip galvanized steel sheets, forming a more corrosion-resistant alloy layer. These tiles offer exceptional corrosion resistance, as well as high heat resistance and oxidation resistance, making them suitable for extreme environments such as high-temperature and high-humidity conditions.
3，Plastic-Sprayed Color Steel Tiles
Plastic-sprayed color steel tiles are created by spraying a layer of colorful plastic powder onto the surface of steel sheets, forming a durable and aesthetically pleasing coating. These tiles come in a variety of colors, providing excellent decorative qualities. They also have good weather resistance and corrosion resistance, making them ideal for exterior decoration of various buildings.

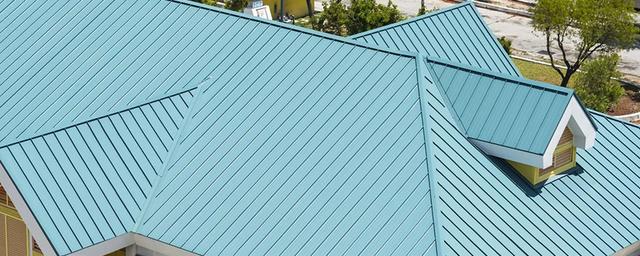

Application：
