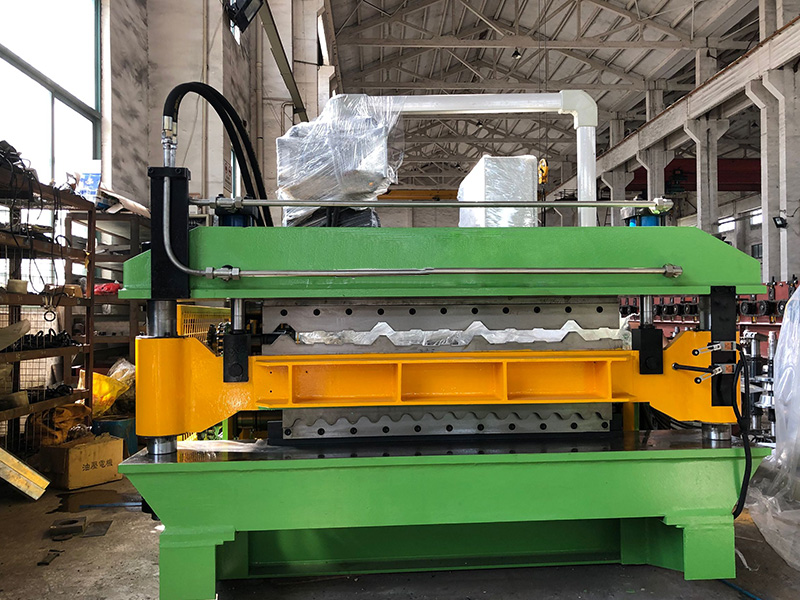

The double deck roll forming machine has advantages such as a small footprint, low investment cost, and more competitive products in the market.
| Number | Items | Unit\Type | RF-DL |
| 1 | Steel Thickness | mm | 0.4-0.8mm, coil width 1220 and 1000mm |
| 2 | Forming Speed | m/min | 45516 |
| 3 | Roller stands | stand | 20 stands bottom layer; 18 stands top layer |
| 4 | Roller Material | mm | 45# steel, coated with chrome quenching |
| Shaft material and diameter | mm | Ф76 45# steel, coated with chrome | |
| 5 | Main Motor Power | Kw | 7.5 |
| 6 | Hydraulic cutting Power | Kw | 4 |
| 7 | Hydraulic pressure | Mpa | 12 |
| 8 | Power Supply | 220V, 60HZ,3 phase | |
| 9 | Tolerance | mm | 1.5 |
| 10 | Material of cutting | Cr12mov HRC60-62 | |
| 11 | Control system | PLC with touch screen | |
| 12 | Machine net weight | T | 8 |

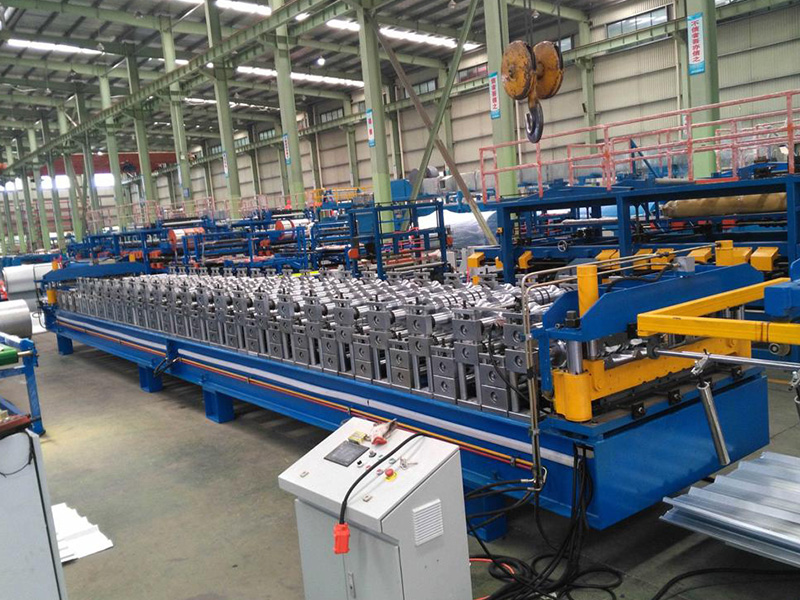

Working flow of double layer forming machine
Decoiler(passive/auto)—Double Layer Roll Forming Machine—Cutting
Color steel tiles are made from color-coated steel sheets, roll-forming and cold-bent into various wave-shaped profiled sheets.
They are suitable for industrial and civil buildings, warehouses, special-purpose structures, and the roofs and walls of large-span steel-structure buildings, as well as interior and exterior wall decoration. These tiles are characterized by their lightweight, high strength, rich color options, easy and fast installation, earthquake resistance, fire resistance, waterproofing, long service life, and maintenance-free properties. They have now been widely promoted and applied in various fields.
