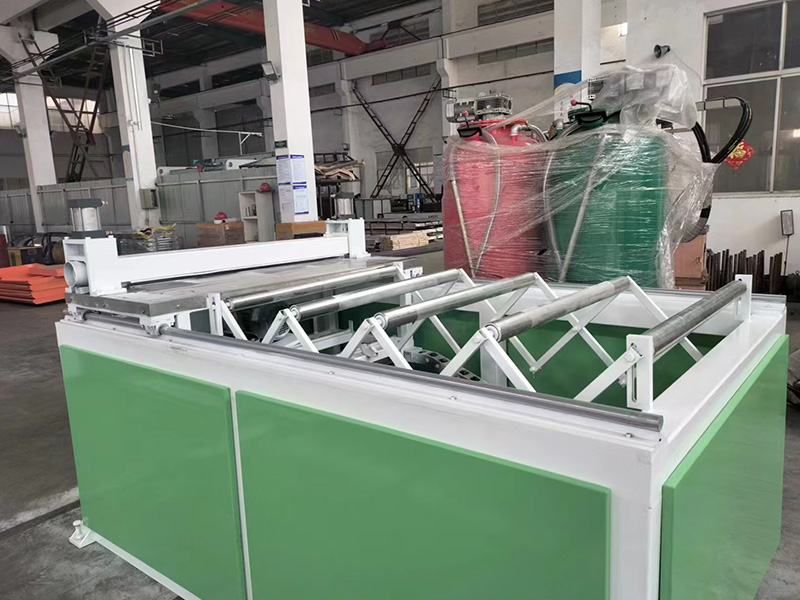

Interior Wall Panel PU Sandwich Panel Line

High Production Efficiency: The As an efficient and environmentally friendly construction production method, the wall sandwich panel roll forming machine is gradually becoming an important part of the modern construction industry. Through automation and mechanization, the production line improves production efficiency, reduces production costs, and brings unprecedented development opportunities to the construction industry offers high production capacity, enabling the rapid manufacturing of a large number of PU wall panels to ensure timely delivery and meet market demands.

Stable Product Quality: The production process ensures the stability and durability of each PU wall panel, making them suitable for commercial, industrial, and residential applications.

1. PU foaming thickness: 10 mm, aluminum and galvanized coil thickness 0.27-0.5 mm
 2. Linear Speed of production: 16 meters/min
 3. Maximum Roll Forming speed: 20 meters/min
 4. Reciprocating times of injection head per minute<60
 5. Production type: totally continuous production with PLC controlling
 6. Composite structure:position fixed by double Aluminum block tracker
 7. Foaming system: totally automatically continuous foaming, quantity of foaming could be stepless adjustable
 8. Main Power of production 100 KW
 9. Cutting: pneumatic piston driving, non-stop cutting via sliding table
 10. Electronic controlling system: full-frequency PLC controlling system.

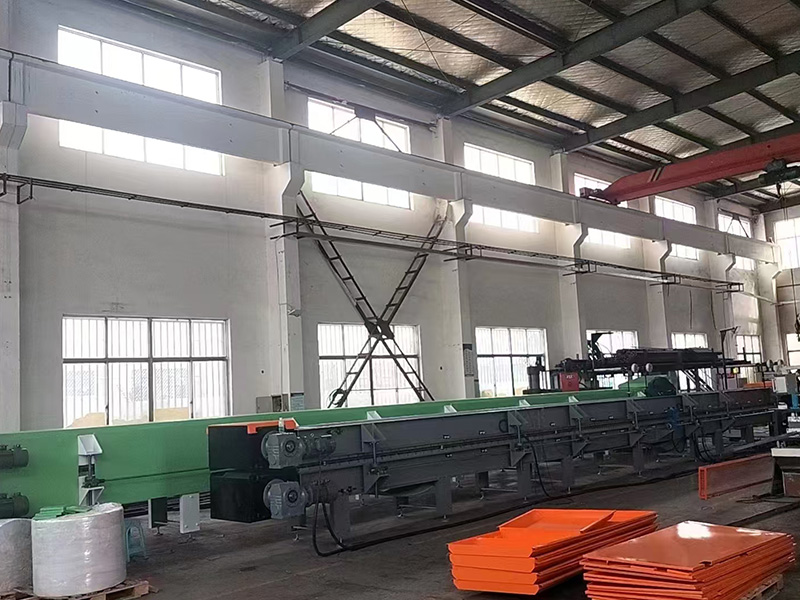

Working Flow of Wall Panel PU Sandwich Panel Line

Decoiler(passive/auto)—Roll Forming Machine—PU Foaming machine—Curing machine—Servo Following Cutting—palletizer

Market application of integrated wall panel equipment:

Polyurethane insulated sandwich panels for construction have a beautiful appearance and good overall effect. They combine load-bearing, insulation, fire resistance, waterproofing, high strength, and long service life, and do not require secondary decoration. They are easy to install, have a short construction period, good comprehensive benefits, and have a good cost performance advantage. They are a widely used and highly potential high-efficiency energy-saving building enclosure material.

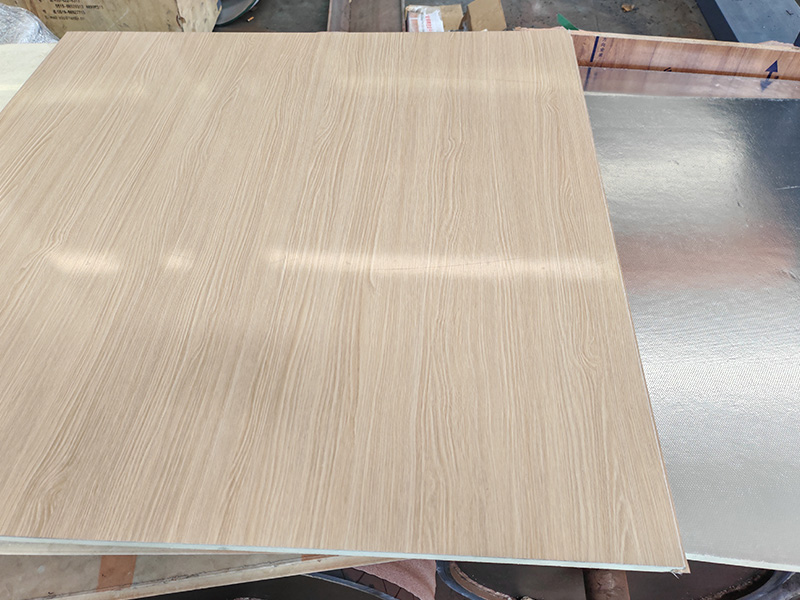

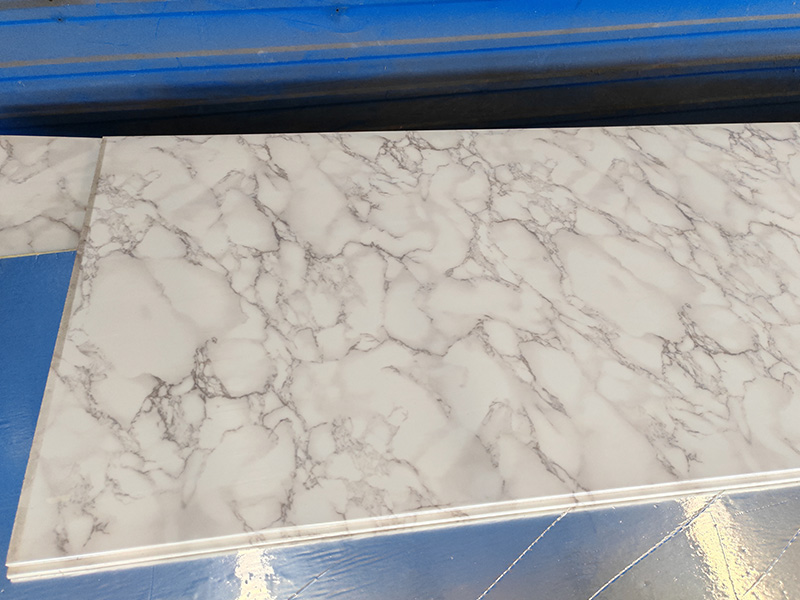

This product is a composite board with bimetallic, single metal, and non-metal surfaces using polyurethane as the insulation layer. It is commonly used for wall and roof enclosure systems in industrial plants, logistics warehouses, and integrated buildings.
