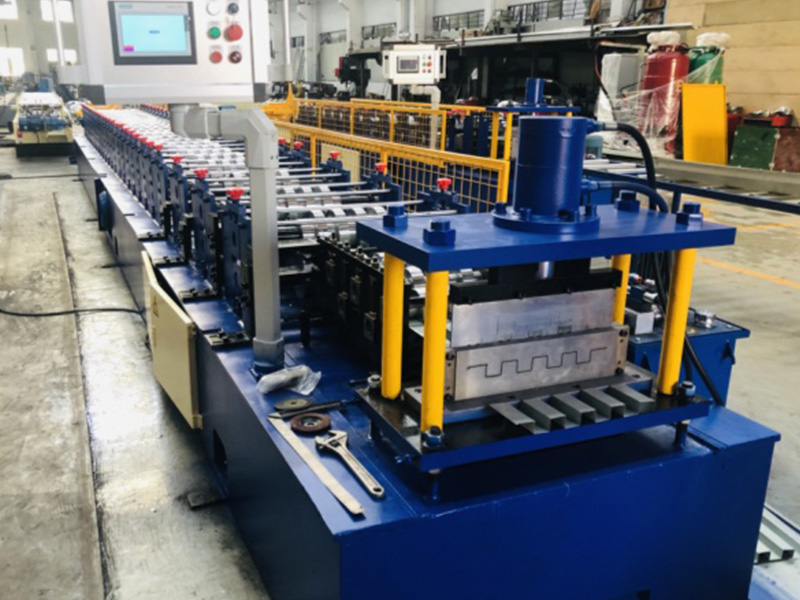

The corrugated sheet rolling machine adopts a continuous production method, enabling the production of a large number of products in a short time, thus improving production efficiency.
The wall panel machine delivers excellent pressing performance, ensuring materials are pressed uniformly and stably, leading to better control over dimensions and surface roughness, thereby ensuring product quality.
The wall panel machine optimizes material usage during the pressing process, reducing waste and lowering production costs.
Item NO | Description | Offered specification |
Roll forming machine | ||
1. | Rolling speed | 10-12m/min |
2. | Rolling thickness | 0.4-0.8mm |
3. | Raw material | Galvanized steel coils or PPGI |
4. | Main motor | 7.5kw |
5. | Hydraulic motor | 5.5kw |
6. | dimension | 7500×700×1000(mm) |
7. | Roller stations | About 25 stations |
8. | Roller material | 45#forge steel, coated with chrome |
9. | Shaft diameter | Φ70mm,material is 45# forge steel |
10. | Transmission | By chain 1 inch |
11. | Material of chain | 45# forged steel with frequency quenching, 12A |
12. | Material of cutting | Cr12Mov with quench HRC58-62° |
13. | Tolerance | 6m+-0.5mm |
14. | Frame | H type steel |
15. | Voltage | 380v, 50hz, 3phases Or according to your request |
test

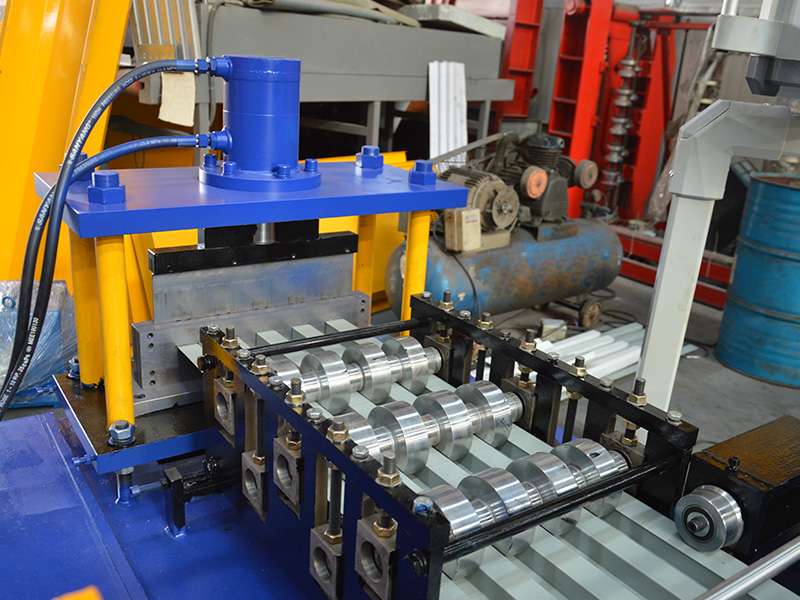

Working Flow of corrugated roll forming machine
Decoiler(passive/auto)—Roll Forming Machine—Servo Following Cutting

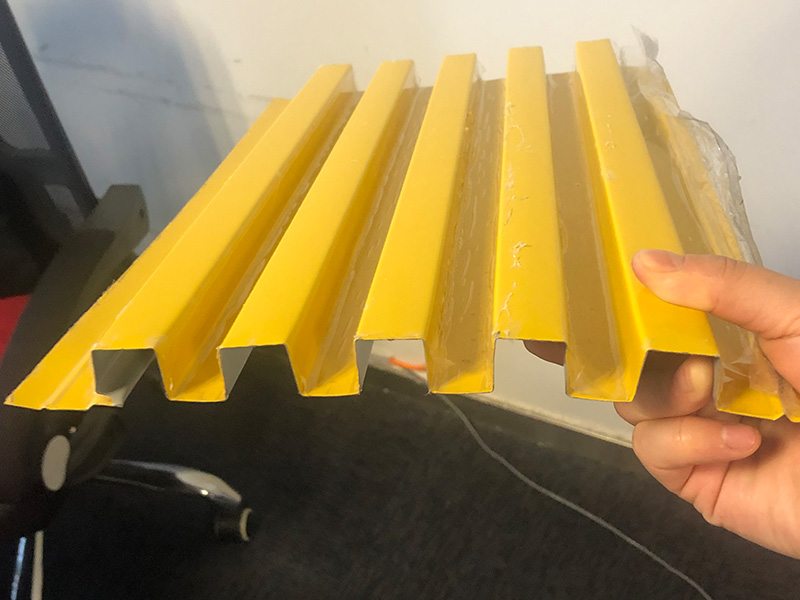

Corrugated aluminum panels are formed through continuous roll forming, offering easy installation, lightweight construction, breathability, fire resistance, and a textured appearance.
The aluminum alloy panels undergo a special surface treatment process, giving them excellent anti-corrosion, fire-resistant, and easy-to-clean properties. These panels are easy to install, have low maintenance costs, and boast a long service life, making them an ideal choice for modern architectural decoration.

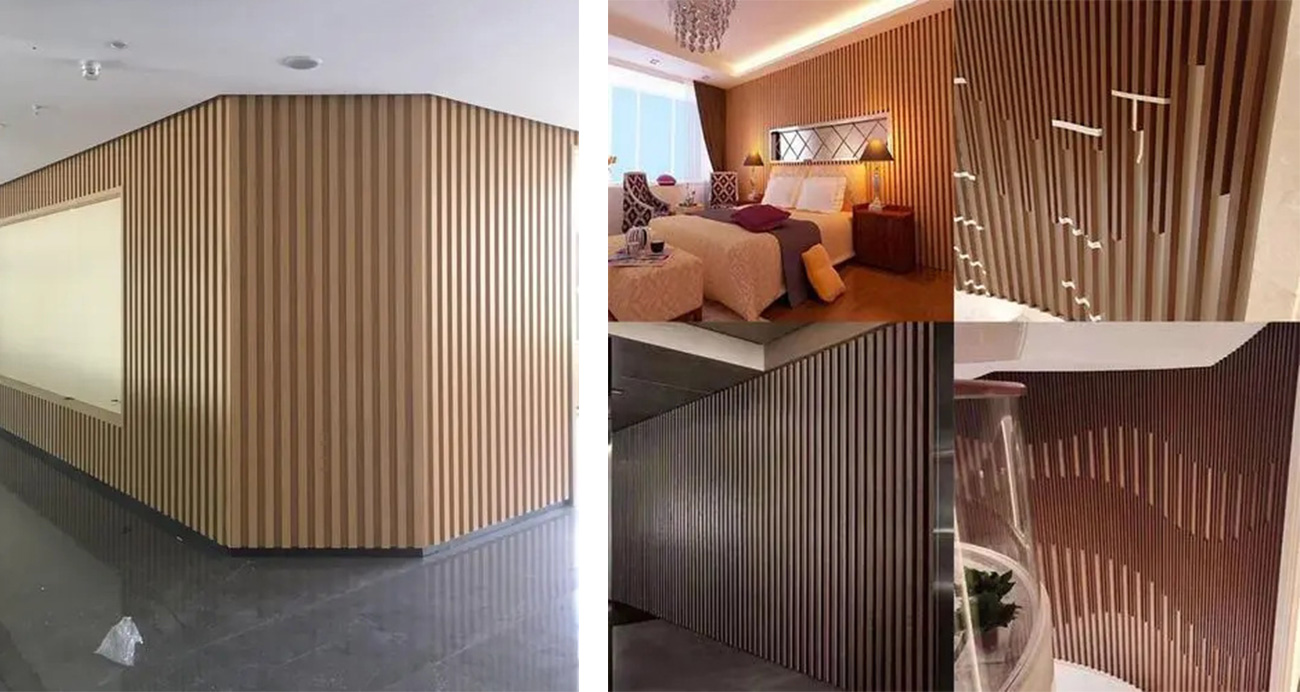

Applications:
Commercial buildings, airports, high-speed rail/train stations, subways, sports venues, schools, conference rooms, villas, office buildings, hospitals, government buildings, exhibition halls, homes/courtyards, opera houses, hotels/clubs, banks, factories/workshops, shopping malls/restaurants, libraries, parking lots, overpasses/pedestrian walkways, toll stations, gas stations, storefront signs, auto dealerships/sales offices.
