Suitable Plate Material : thickness 1.5mm, Galvanized steel or blank steel
Working Speed : 10 meters / min
Forming machine : about 22 stations
Material of Roller : Gcr15, Quench HRC58-62 Plated Chrome
| Suitable Plate Material: | Thickness 1.5mm, Galvanized steel or blank steel |
| Working Speed: | 10 meters / min |
| Forming machine: | About 22 stations |
| Material of Roller: | Gcr15, Quench HRC58-62 Plated Chrome |
| Material of Shaft: | 45# Advanced Steel (Diameter: 76mm), thermal refining |
| Driven system: | Drive by chain |
| Main Power with reducer: | 11KW WH Chinese Famous |
| Cutting: | Hydraulic Cutting Cr12mov |
| Material of Cutting Knife: | Cr12Mov, Quench HRC58-62 |
| Hydraulic Station Power: | 5.5KW Wuxi Wanshen Famous Chinese Brand |
| The whole machine is controlled by industry computer | PLC. |
| PLC | Siemens, Japan English and Chinese Language |
| Touch Screen | Beijing Kunlun Japan |
| Encoder | Omron, Japan |
| Electric parts | Schneider |
| Cutting holder: | Straight cutting by 3 pieces of blades |
| Machine operation: | Manual and full automatic mode at same time with limit switches, and panel support device |
Application

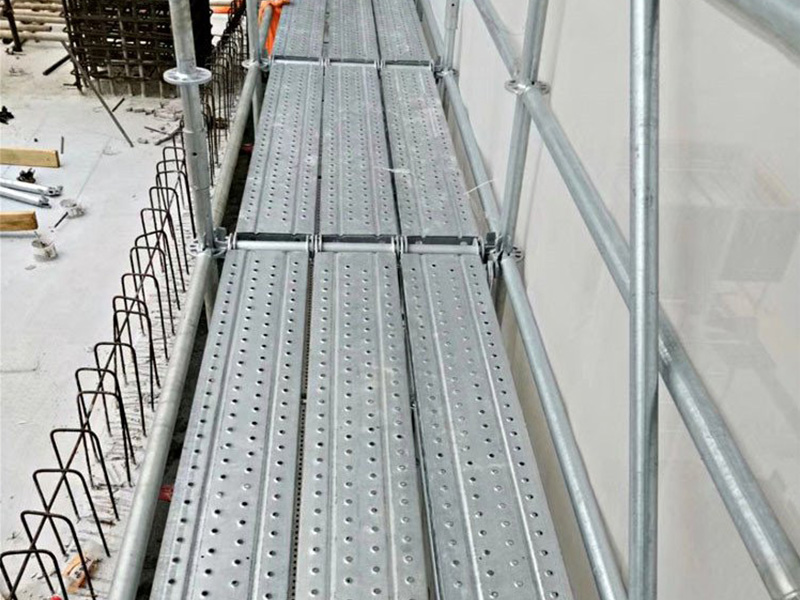

Scaffold plank roll forming machine can make scaffold plank. We adopt servo feeder to make sure the holes are in high precision. We use punching press to make line speed faster and we use hydraulic post cutting to make sure the profile perfect.
The thickness of raw material is around 1-2mm.
