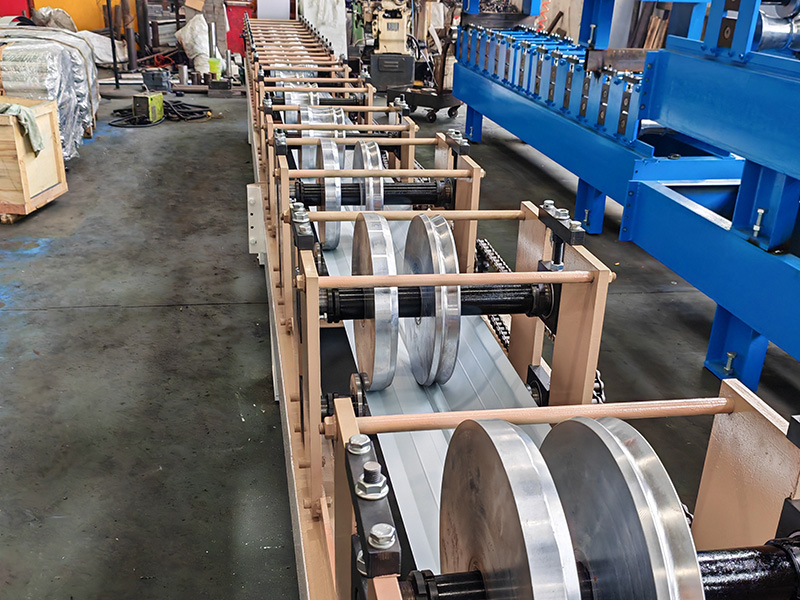

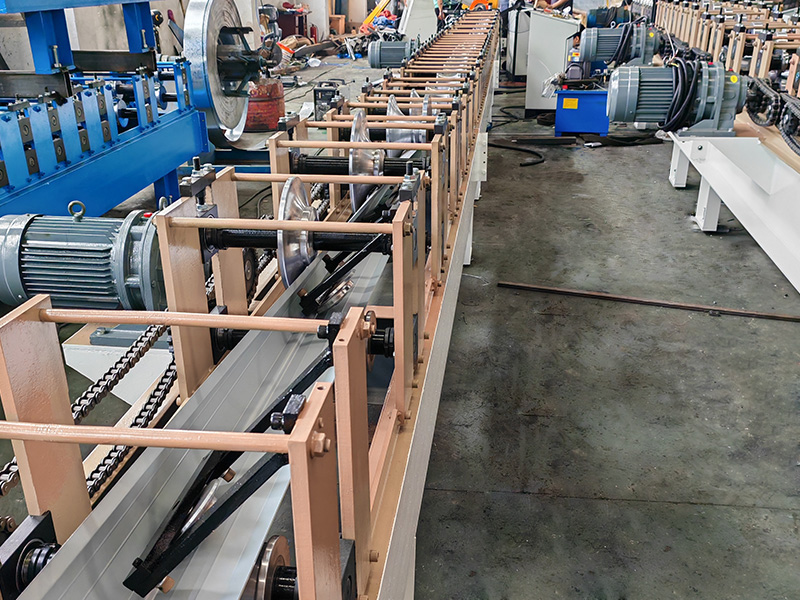

The roller shutter roll forming machine can achieve a forming speed of 10-12m/min, weighs 4 tons, uses a chain transmission, and is powered by a 4KW motor.
Item NO | Description | Offered specification |
Roll forming machine | ||
1. | Rolling speed | 10-12m/min |
2. | Rolling thickness | 0.4-0.8mm |
3. | Raw material | Galvanized steel coils or PPGI |
4. | Main motor | 7.5kw |
5. | Hydraulic motor | 5.5kw |
6. | dimension | 7500×700×1000(mm) |
7. | Roller stations | About 25 stations |
8. | Roller material | 45#forge steel, coated with chrome |
9. | Shaft diameter | Φ70mm,material is 45# forge steel |
10. | Transmission | By chain 1 inch |
11. | Material of chain | 45# forged steel with frequency quenching, 12A |
12. | Material of cutting | Cr12Mov with quench HRC58-62° |
13. | Tolerance | 6m+-0.5mm |
14. | Frame | H type steel |
15. | Voltage | 380v, 50hz, 3phases Or according to your request |
Working flow of rolling shutter forming machine
Decoiler(passive/auto)—rolling shutter patti machine—PU Foaming machine—Curing machine—Servo Following Cutting
Metal roller shutter doors are primarily made of metal materials, offering high flexibility and strength. They are designed as rollable sheet structures that open and close through specific mechanisms. These doors are widely used in commercial, industrial, garage, and residential settings.
