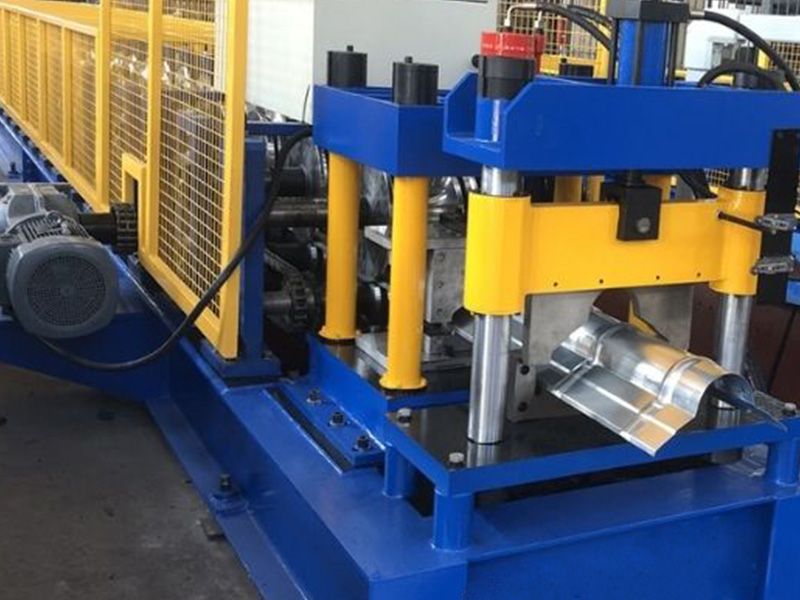

Ridge Cap Roll Forming Machine

Products Introduction
The ridge cap machine can produce ridge tiles in various specifications and styles, widely used in roofing projects for industrial and residential buildings. Due to the excellent sealing and structural stability of the ridge tiles it produces, it is particularly popular in the multi-story steel structure building industry.
Features
Technical Parameters
Product Description
Projects
Features

The ridge forming machine uses a computer mainboard control and inverter, with a production speed of up to 8m/min, resulting in high yield and high production efficiency.


Technical Parameters

ItemsSpecifications
Material of coilMaterial Thickness0.3—0.8mm

Un Coiler3 tons manual

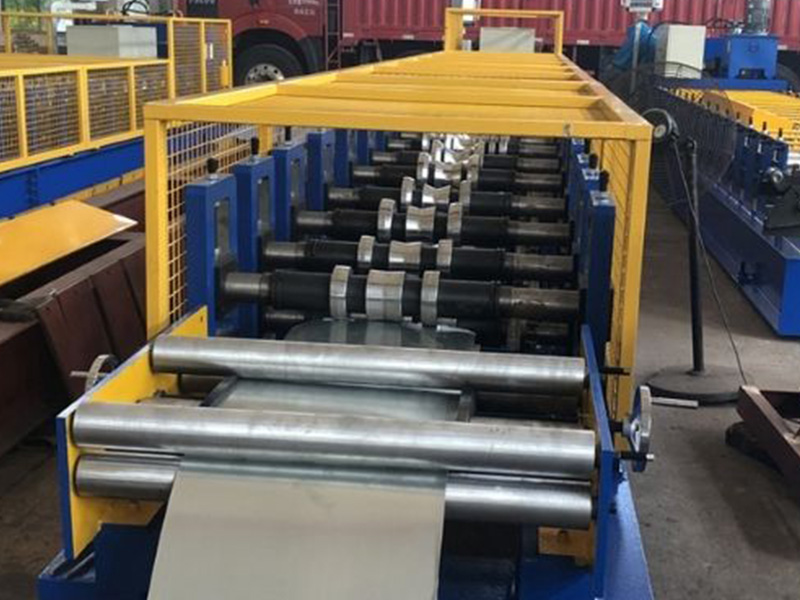

Forming systemRolling Speed5-10m/min

Roller Stations16 stations

Roller material45# steel, coated wif chrome

Maim Motor Power7.5kw

Hydraulic cutting Power7.5kw
CuttingMaterial Of CuttingCR12 wif quench treatment
systemHardnessHRC58-62

Tolerance+-1.5mm
Electrical control systemElectric Source460V, 60HZ,3 phase


Also can satisfy customer’s require

Control SystemPLC wif touch screen

Way Of Drive1.2 inch single chain
PackingColor of the machineblue


Introduction

Working flow of capping roll forming machine

Decoiler(passive/auto)ridge cap roll forming machineCutting



Projects

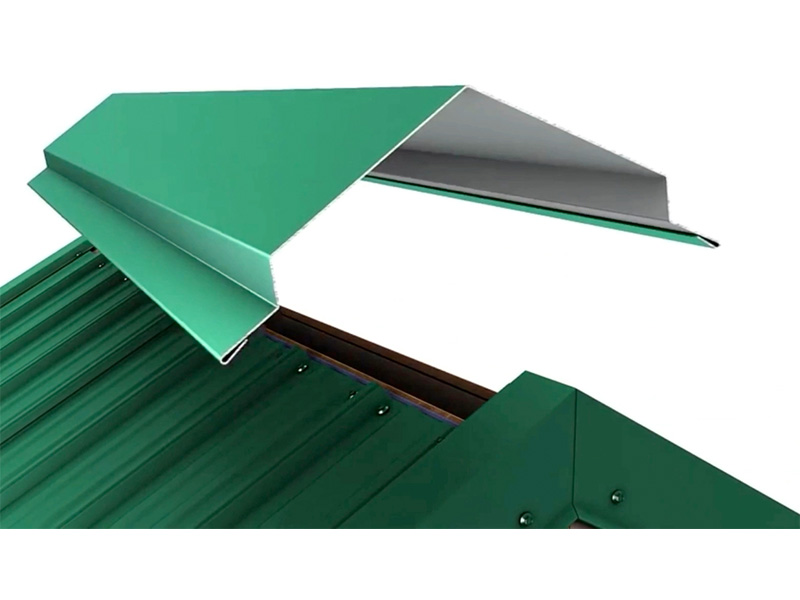

A roof ridge cap is a building material installed along the ridge line of a sloped roof. Traditional gable roofs consist of two sloping sides that intersect at the center. The point where these two edges meet forms the peak of the roof, known as the ridge or ridge line. A ridge cap is installed on the seam between these two edges to prevent rain and snow from entering the home. It also finishes the roof's appearance by creating a tightly sealed joint on both sides.
