Racking upright roll forming machine

The storage rack roll forming machine is widely used in the production of heavy-duty and light-duty posts. This machine can process raw materials such as cold-rolled steel, galvanized coils, and carbon steel with thicknesses ranging from 1.5 to 3.0 mm.

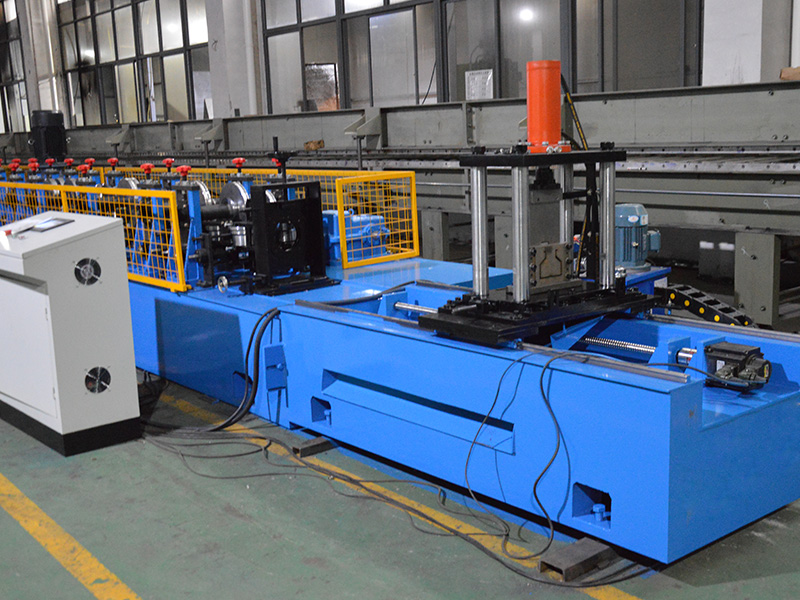

Warehouse Racking Upright Post Roll Forming Machine With 3T Hydraulic Uncoiler

The overall production line consists of decoiler, leveling device, servo following, punching press system, forming system , hydraulic cutting system , electric control system , out tables, etc.

Machine parts list

Working flow of rack roll forming machine

Decoiler(passive/auto)—Punching—roll forming machine—Servo Following Cutting

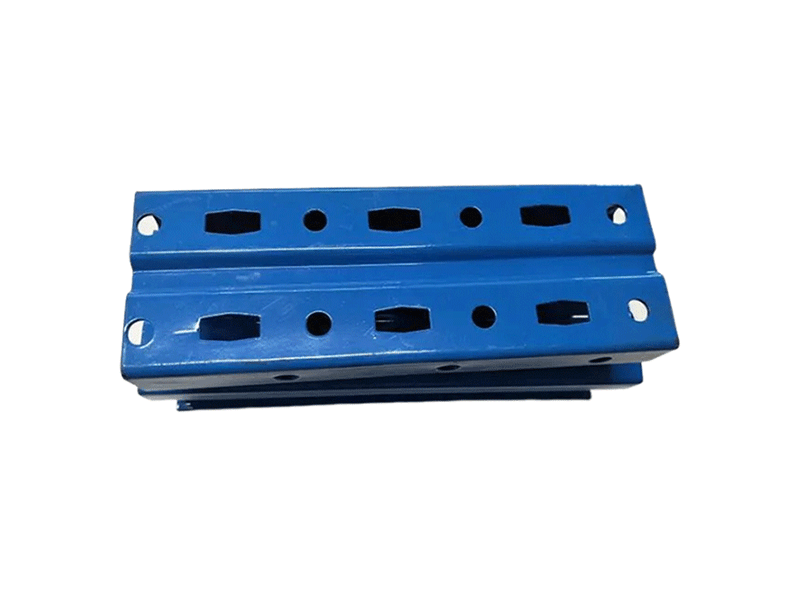

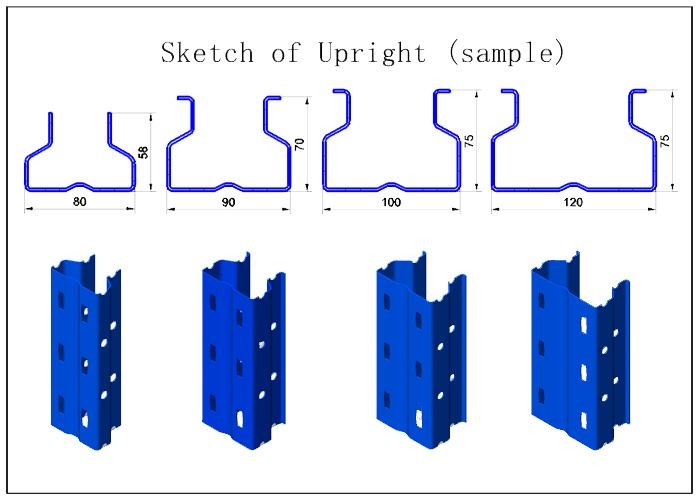

The shelf post is the supporting pillar in the shelf series, connecting the upper and lower shelf beams vertically. It determines the stability and load-bearing capacity of the entire shelving system. Shelf posts come in various materials, with common ones including cold-rolled steel plates, square or round steel pipes, and polymer materials. The height of the shelf post is determined based on specific tasks and product characteristics.

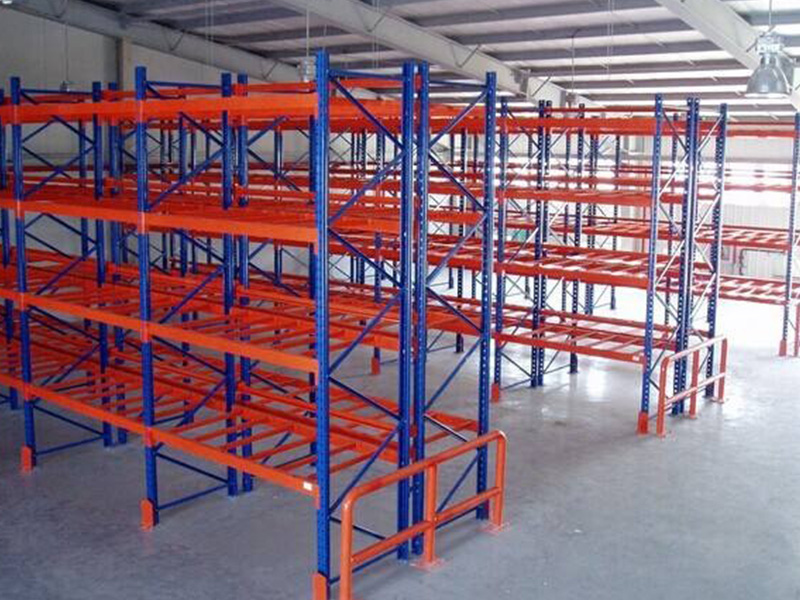

As the support point of the shelf, if the shelf post is not sturdy, the entire shelving system will be fragile. The shelf post bears the weight of the items supported by the shelf and is responsible for transferring the load to the ground. If there is an issue with the shelf post, it could easily cause the entire shelving system to collapse. Therefore, we often choose high-quality shelf posts to ensure the shelf's lifespan and stability.
