The PU Roller Shutter Door Forming Machine features a high degree of automation, including a metering system, mixing unit, and a three-dimensional moving pouring head, which enhances production efficiency and ensures product consistency.
| Main specification | |
| a. Decoiler: | Manual un-coiling Capacity: ≤3 T |
| b. Main datas of forming machine | |
| Forming stands: | About 36 stands |
| Roller material GCr15: | Model steel, HRC50-54 |
| Axial diameter: | Φ40mm |
| Main axial material: | No 45 steel HRB260-280 |
| Driving part is gear box transmission | |
| Frequency conversion decelerating Panasonic | |
| PLC control: | Fix length control ±1mm (Panasonic) |
| Main components: | Schneider |
| The precision of roller: | less than ±0.5mm |
| Main roll forming machine motor: | 380V, 50HZ, 11kw (or according to your requirements) |
| Machine basement material: | H beam |
| Foaming machine: | 1 set (China top brand) |
| Pneumatic flying punching machine: | 1 set Material of cut: Cr12Mov Quench: HRC58-62 |
| Automatic punching device | 1 set |
| Finished products table: | 1 set |
| Working speed: | 8-15m/min |
| dimensions of main forming machine: | 24000mm× 600mm × 900mm |
| Machine weight: | About 7T |
Working flow of roller shutter door making machine
Decoiler(passive/auto)—roller shutter door roll forming machine—PU Foaming machine—Curing machine—Servo Following Cutting

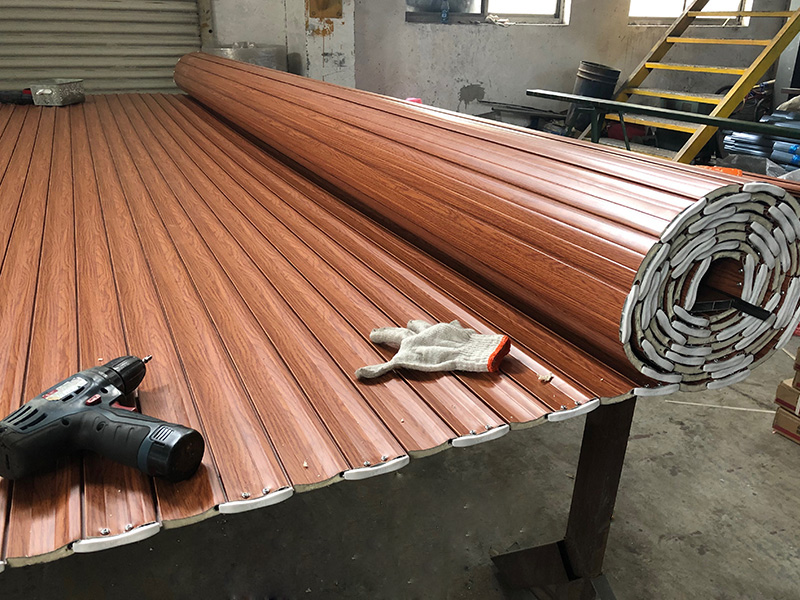

PU rolling shutter doors are widely used in industrial and commercial buildings, such as warehouses, garages, and shopping malls. They are favored for their excellent performance in these applications.
