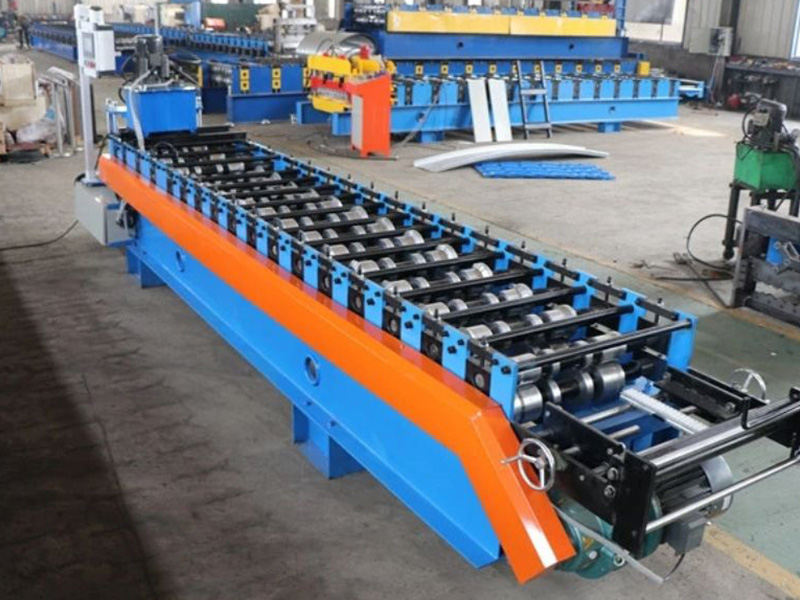

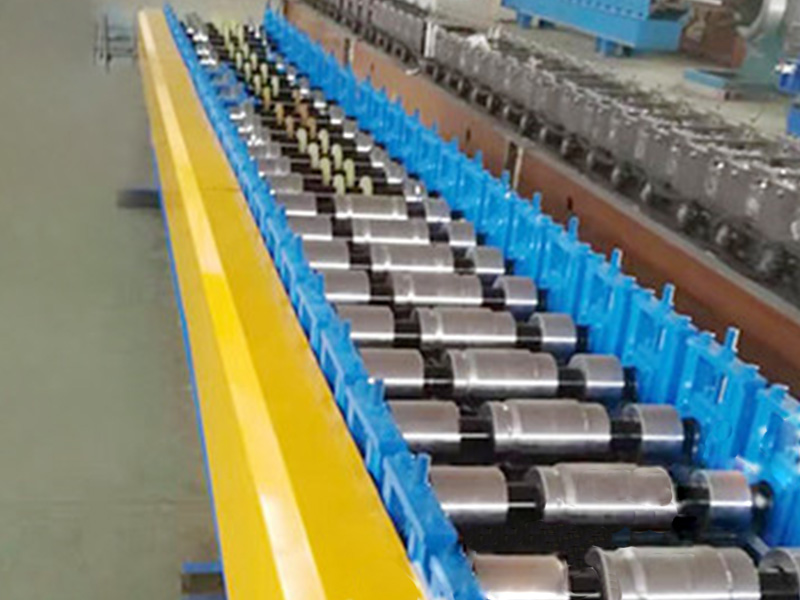

1. High production efficiency: The wall panel roll forming machine uses a continuous production method, allowing for the rapid production of a large number of products in a short time.
2. Stable product quality: The wall panel roll forming machine delivers excellent pressing results, ensuring uniform and stable material processing, leading to better control over dimensions and surface roughness.
3. Reduced production costs: The wall panel roll forming machine optimizes material utilization during the pressing process, minimizing waste.
| Description | Offered specification | |
| 1 | Roll forming machine | |
| 1.1 | Rolling speed | 10-12 meters/min(not include cutting time) |
| 1.2 | Rolling thickness | 0.3mm-0.8mm |
| 1.3 | Raw material | Color painted coils, Aluminium, Zinc, Galvanized |
| 1.4 | Main Motor | 7.5KW |
| 1.5 | Dimension | About 1100×1600×1200(mm) |
| 1.8 | Roller material | 45#forge steel, coated with chrome |
| 1.9 | Shaft diameter | Φ76mm |
| 1.1 | Transmission | By chain 1.2 inch |
| 1.11 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.12 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.13 | Tolerance | 10m+-1.5mm |
| 1.14 | Hydraulic station | 4kw |
Working Flow of metal wall panel machine
Decoiler(passive/auto)—Roll Forming Machine—Servo Following Cutting

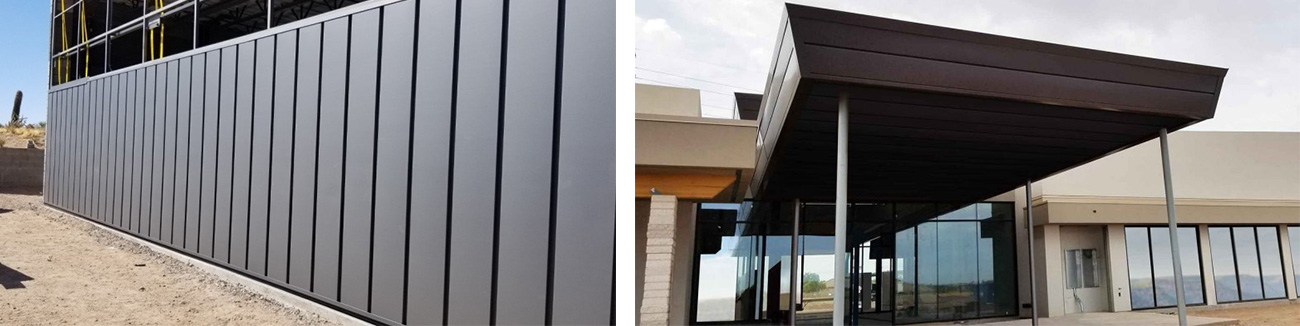

1. Lightweight with Good Rigidity and High Strength
Aluminum panels are lightweight yet possess excellent rigidity and high strength.
2. Superior Fire Resistance
Aluminum panels are made of high-strength aluminum alloy and fluorocarbon paint or surface coatings, providing outstanding fire resistance and meeting fire safety requirements. They can pass fire inspections with ease.
3. Exceptional Weather Resistance, Self-Cleaning Properties, and UV Resistance
Aluminum panels excel in weather resistance, self-cleaning, UV protection, as well as acid and alkali resistance. They effectively withstand acid rain, outdoor air pollution, and UV corrosion. Their unique molecular structure prevents dust accumulation, enhancing their self-cleaning capabilities.
4. Excellent Re-formability
Aluminum panels offer exceptional malleability, allowing them to be processed into flat, curved, or spherical panels and other complex shapes, bringing designers' creative visions to life.
5. Vivid and Diverse Colors
Aluminum panels are available in a wide range of colors and textures, offering vibrant visual effects and excellent decorative performance.
6. Matte Finish Coatings
The surface coatings of aluminum panels feature a matte gloss, adhering to the modern trend of bright yet subdued aesthetics. This effectively mitigates the glare pollution caused by glass curtain walls, making aluminum panels an eco-friendly and recyclable material.
7. Lightweight and Structurally Stable
Made primarily from aluminum-manganese and aluminum-magnesium alloys, aluminum panels are extremely lightweight. The use of modern welding technology at the joints and reinforcement ribs ensures flat surfaces, wind pressure resistance, and impact resistance, reducing the overall load on buildings.
8. Pre-Fabricated for Efficient Installation
Aluminum panels are pre-fabricated and shaped in the factory, eliminating the need for on-site processing, which increases efficiency and shortens construction timelines.
9. Recyclable and Environmentally Friendly
Aluminum panels are 100% recyclable, unlike glass, stone, ceramic, or aluminum-plastic composite materials. They have high residual value upon recycling, contributing significantly to environmental sustainability.
