Our company is a leading enterprise in China light keel roll forming machine. The equipment is computer-controlled, allowing for automatic adjustments to product width and height, ensuring product consistency and reducing production costs.
| Size | 89*41mm |
| Thickness | 0.6-1.2mm(G300-G550Galvanzied coils and Aluzinc ) |
| Standard Producing speed | 300-700m/h |
| Max producing speed | 1500m/h |
| Main motor | 7.5kw |
| Power supplier | 380V 50Hz 3phases according to your request |
| Hydraulic station | 5.5kw |
| Hydraulic tank capacity | 100L |
| Hydraulic pressure | computer set |
| Hydraulic cooling | Fan cooling |
| Frame and punching dies | Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting |
| Tolerance | +- 0.5mm |
| Inkjet printer | Videojet |
| Machine size | 4900*1000*1500mm |
| Weight | 5000kg |
| Color | according to your request |
| De-colier | bearing 2 tonne, automatical decoiler |
Working flow of light keel roll forming machine
Uncoiling—Feeding&Leveling—roll forming machine—Cutting—Products collecting

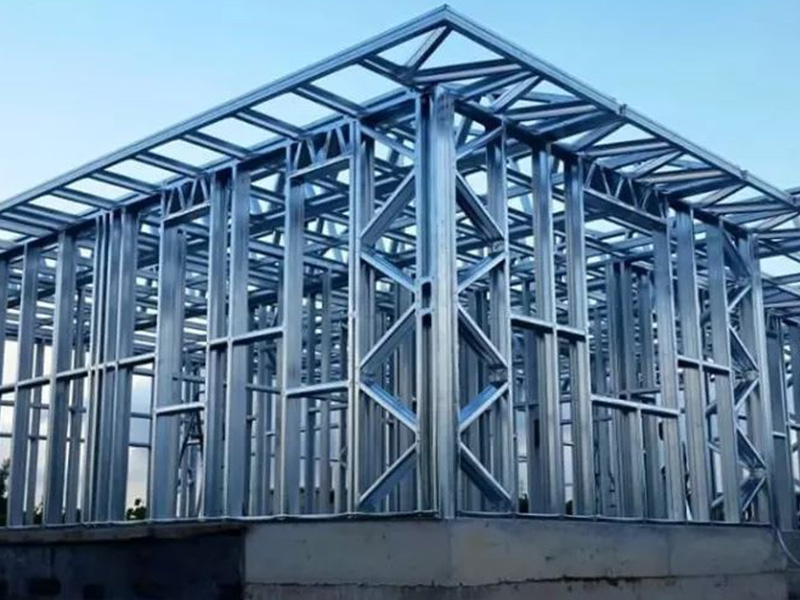

Light steel keel is a type of building material primarily used with gypsum boards and other panels to create ceilings or partition walls, serving as a structural and decorative element in buildings. As a new type of keel product, it is widely applied in various decoration fields. Its main advantages include being lightweight, having excellent fire resistance, offering reliable structural safety, good seismic performance, and effective thermal insulation. Although it has some drawbacks, such as occupying more space and having limitations in design, it remains a highly practical building material.
