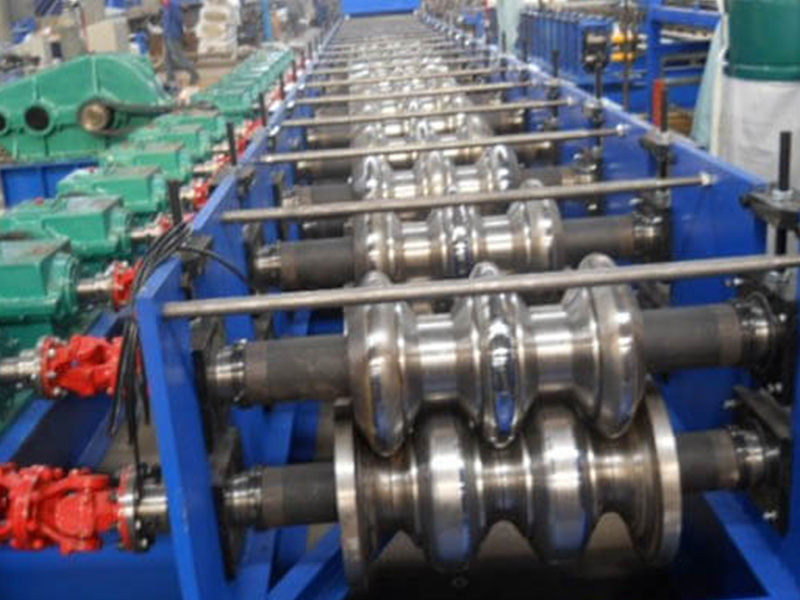

We are highway guardrail roll forming machine manufacturers. These machines feature a high level of automation, making them suitable for large-scale production while ensuring efficient and precise manufacturing. They can continuously press workpieces, offering the advantages of high quality and high precision.
| Main motor power: | 55kw |
| Station: | adopt cast iron HT5 |
| Decelerating motor: | made in Shanghai or Changzhou |
| Drive: | gear box driving |
| Main shaft dia: ￠120mm material: | 45﹟forge steel |
| Roller material: | GCR15 quenched 58°-62°,chromed |
| Roll station: | 15 stations |
| Roller thickness: | 3-4mm |
| Timing by transducer: | 5m--10m/min(including punching) |
| Transducer: | Delta 380V 50HZ, 3phases |
| Computer: | PLC Delta |

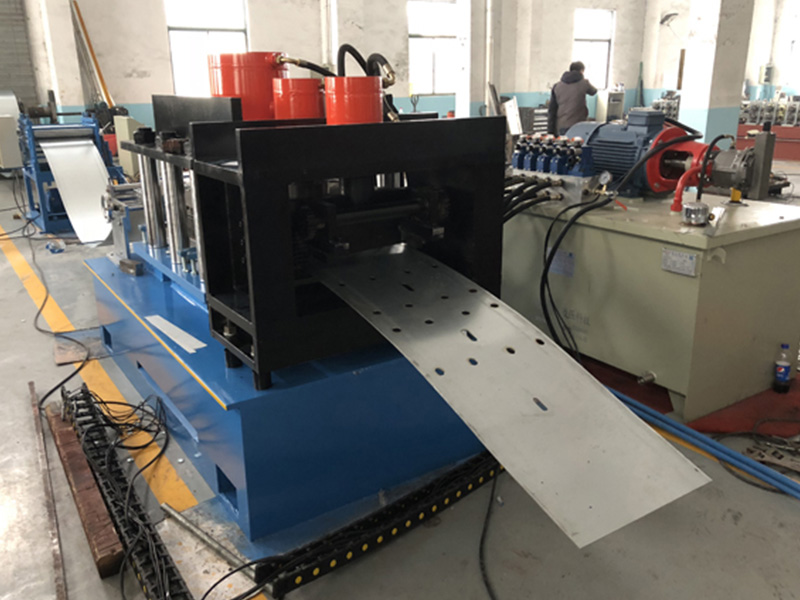

| Using hydraulic punching | |
| Press type: | 315 tons |
| Oil cylinder dia: | ￠180mm |
| Working pressure: | 30mpa |
| Mould material: | Cr12 quenched 58°-62° |
| Hydraulic power: | 7.5kw |
| Size: | 1.5m long*1.1m wide*1.2m high |
Working flow of highway guardrail making machine

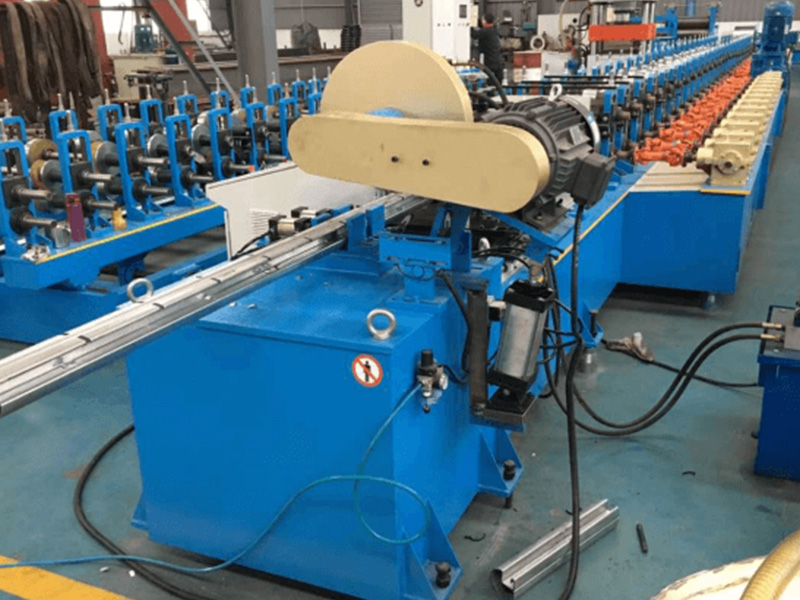

Decoiler(passive/auto)—Punching—highway guardrail machine—Servo Following Cutting—Automatic stacking
The w-beam highway guardrail is an important traffic facility primarily used on highways, urban roads, and bridges to prevent vehicles from veering off the road during travel, ensuring driving safety. It is composed of a foundation, posts, and beams. These components absorb collision energy through deformation, forcing out-of-control vehicles to change direction and return to their normal trajectory, thereby reducing the damage caused by accidents.
