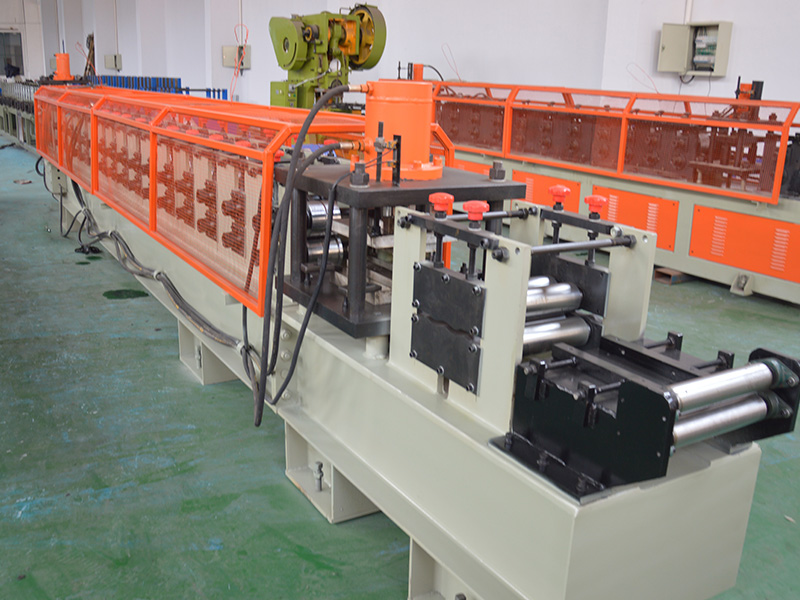

A Grape Support Roll Forming Machine is equipment used for manufacturing stakes required in grape cultivation. It can produce dozens or even hundreds of grape stakes per hour, meeting the demands of large-scale vineyards.
The grape stake roll forming machine can continuously and automatically complete the forming and cutting process, significantly improving production efficiency compared to manual manufacturing. With precisely designed forming molds and an advanced control system, it ensures that the produced grape stakes have a uniform shape and consistent dimensions, meeting the standard requirements for grape cul
| Suitable Plate Material: | thickness 1.2-1.5mm, Galvanized steel or blank steel |
| Working Speed: | about 15-18meters / min |
| Forming machine: | about 16 stations |
| Material of Roller: | Gcr15, Quench HRC58-62 Plated Chrome |
| Material of Shaft: | 45# Advanced Steel (Diameter: 75mm), thermal refining |
| Drive system: | Gear box driven |
| Main Power with reducer: | 11KW WH Chinese Famous |
| Cutting: | Hydraulic Cutting Cr12mov |
| Material of Cutting Knife: | Cr12Mov, Quench HRC58-62 |
| Hydraulic Station Power: | 4KW Wuxi Wanshen Famous Chinese Brand |
| The whole machine is controlled by industry computer-PLC. | |
| PLC | Panasonic, English and Chinese Language |
| Touch Screen | Kunlun |
| Encoder | Omron, Japan |
| Electric parts | Schneider |
| Machine operation: | Manual and full automatic mode at same time with limit switches, and panel support device |

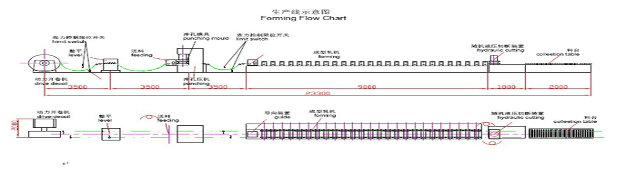

Working flow of Grape Vine Trellis Roll Forming Machine
Decoiler(passive/auto)—Feeding&leveling—Cutting&welding——Punching——rollforming——Punching——hydraulic cut to length——Auto stacker

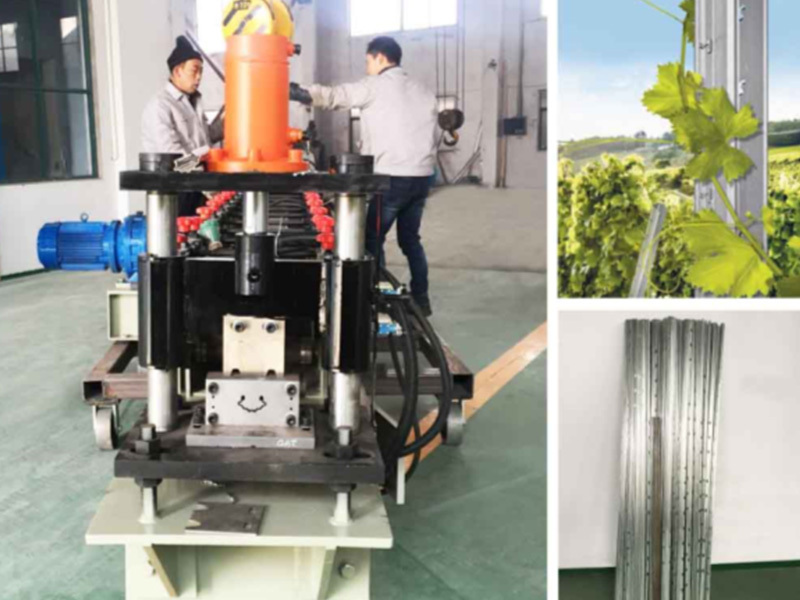

Grape stakes are primarily used in the grape cultivation industry. In vineyard construction and management, they serve as essential components for building grape trellises, providing support for grapevines to grow. Whether in traditional open-field grape farming or modern facility-based grape cultivation, a large number of grape stakes are required to construct stable trellises. Additionally, agricultural research institutions and crop technology promotion departments also use grape stake forming machines to produce stakes for experimental purposes, facilitating studies on different planting methods and cultivation techniques.
