By adopting an automatic control system, the equipment can continuously and automatically complete the stiffener forming and cutting process. With high-precision forming molds and advanced processing technology, it ensures that the stiffeners have high shape accuracy and tight dimensional tolerances. Additionally, the surface quality is excellent, with no visible scratches, cracks, or other defects.
| 10 ton hydraulic Un-coiler with coil car | 1 set |
| Feeding and leveling device | 1 set |
| Hydraulic punching device | 2 sets |
| Cutting and Weld device | 1 set |
| Main roll forming machine | 1 set |
| Hydraulic press machine 600 tons | 1 set |
| Punching moulds for press machine | 1 set |
| Servo following Cutting | 1 set |
| Control box | 1 unit |
| Hydraulic system | 1 unit |

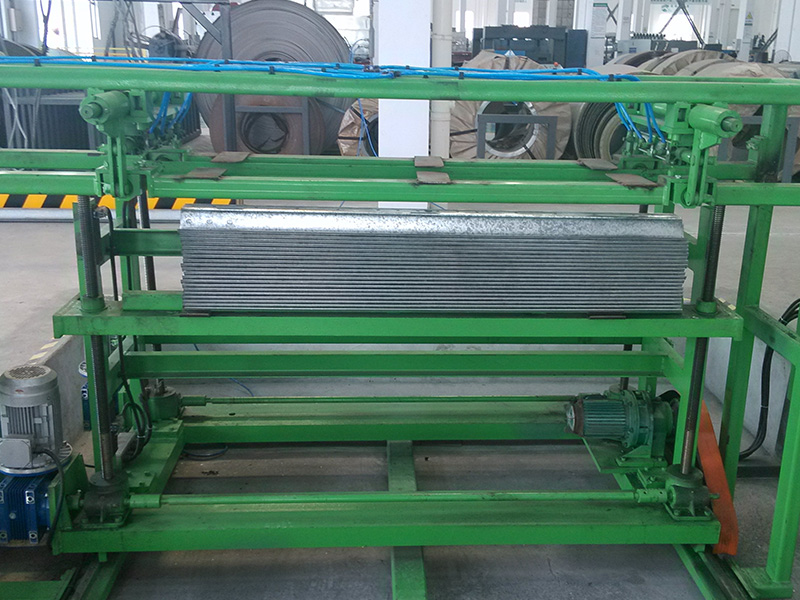

| 6 meters auto stacker | 1 unit |
| Subtotal FOB Shanghai |

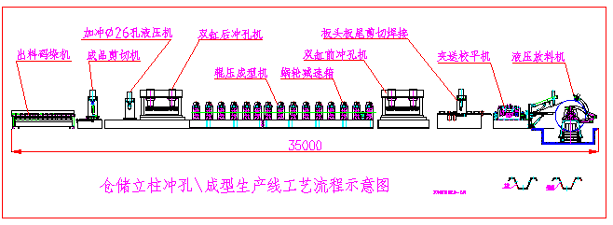

Working flow of Grain Bin Stiffener Roll Forming Line
De-coiling—Feeding&leveling—Cutting&welding——Punching——rollforming——Punching——hydraulic cut to length——Auto stacker
It is mainly used in the grain bin construction industry, providing stiffeners for various types of grain bins. Whether for large industrial grain bins or small rural grain bins, stiffeners are essential for enhancing structural strength and stability, preventing deformation or damage caused by pressure during grain storage. Additionally, similar stiffener roll forming machines may also be used in other fields requiring high structural strength, such as storage facilities and logistics warehouses, to manufacture reinforcement components.
