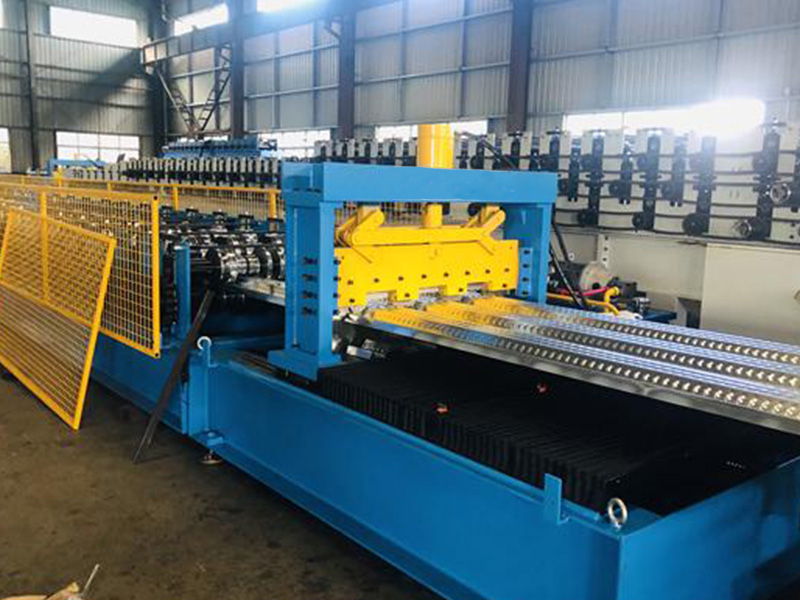

Floor Deck Roll Forming Machine

Products Introduction

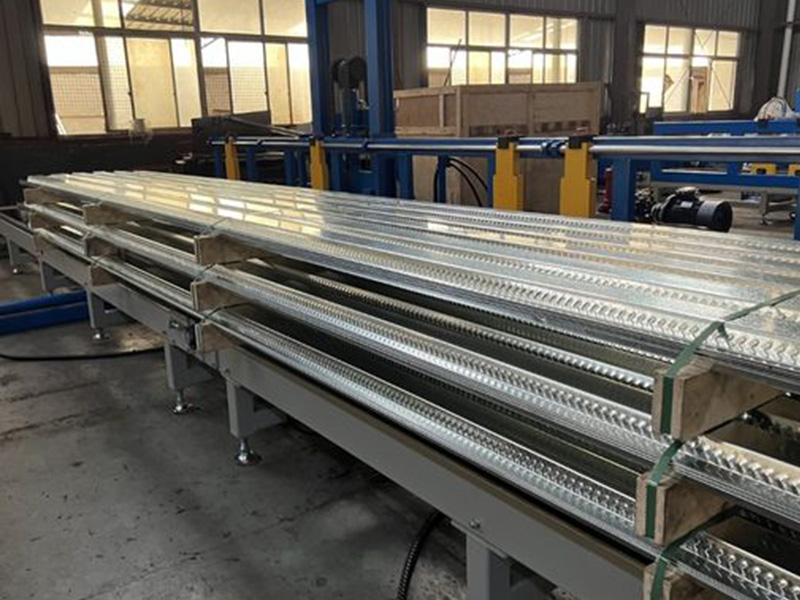

The metal decking produced by the metal deck roll forming machine has the advantages of light weight, high strength, large stiffness, convenient and fast construction, easy to update, and suitability for industrialized production.
Features
Technical Parameters
Product Description
Projects
Features

The floor deck forming machine supports the roll forming of various profiles, quick conversion between different profiles, and optional material handling solutions. Our engineers assist manufacturers in improving safety and uptime.


Technical Parameters
Item NODescriptionUnit\TypeRF-DF
1Steel Thicknessmm0.8-1.2mm
2Forming Speedm/min0-12
3Roller standsstand28
4Roller Material
high-grade 45# steel
5Shaft diameter
Ф90
6Main Motor PowerKw18.5kw
7Hydraulic cutting PowerKw7.5
8Hydraulic pressureMpa12
9Power Supply
220V, 60HZ,3 phase
10Tolerancemm1.5
11Material of cutting
Cr12mov
12Control system
PLC with touch screen
13DRIVE systemChain1.2 inches


Introduction

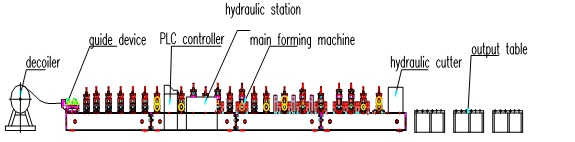

Working flow of deck floor roll forming machine

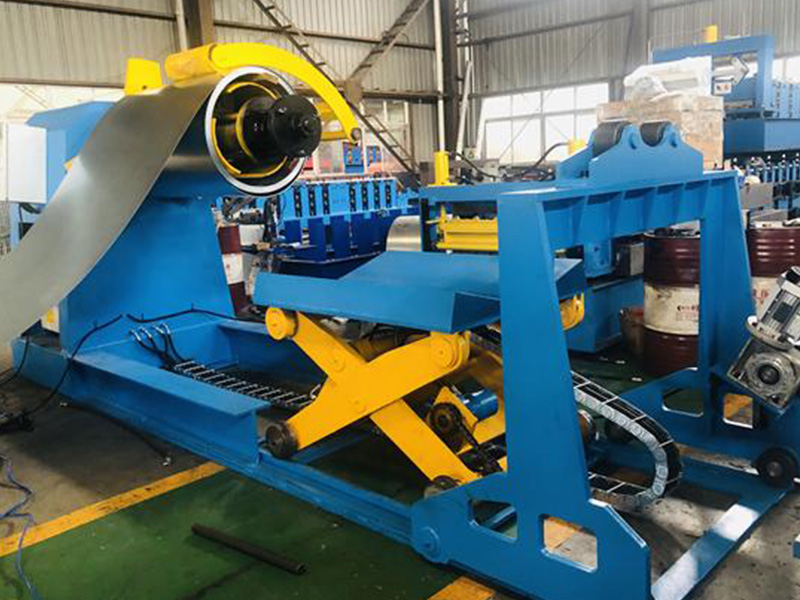

Uncoiling—Feeding&Leveling—deck roll forming machine—Cutting—Products collecting


Projects

1: To meet the requirements for fast construction of the main steel structure, a strong working platform can be provided in a short time. Multi-layer decking of profiled steel sheets and the staged pouring of concrete slabs can be used for assembly-line construction.

2: During the usage phase, the floor slab serves as the tensile reinforcement for the concrete floor, which also enhances the rigidity of the slab, saving both steel and concrete materials.

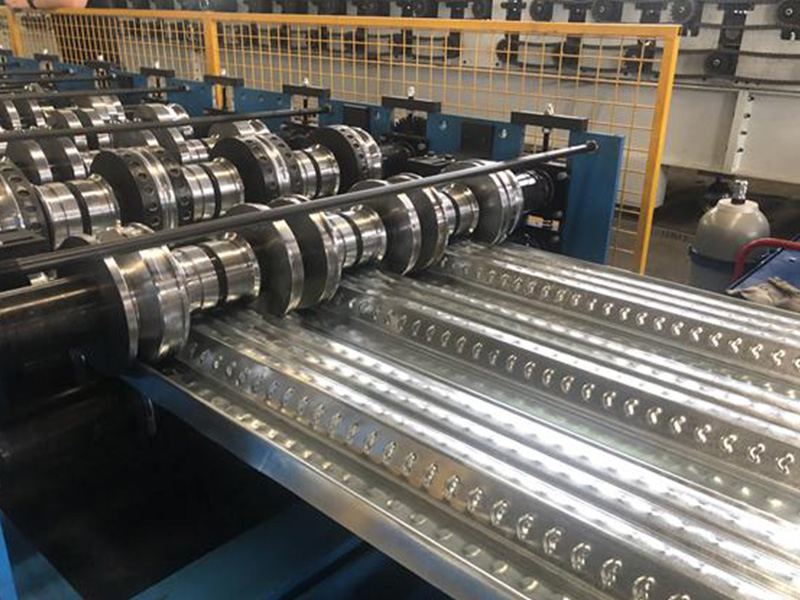

3: The surface of the profiled sheet is embossed, maximizing the bond between the floor slab and the concrete, forming a unified structure. It is also equipped with reinforcing ribs, giving the flooring system high-strength load-bearing capacity.
