The shutter door frame roll making machine is a specialized piece of equipment for single-pass or semi-finished forming. It is also suitable for use in the manufacturing industries of steel structures, home appliances, and more.
| Items | Specifications | Remarks | |
| Material of coil | Material Thickness | 1.5-2mm Steel | |
| Un Coiler | 3 tons manual | ||
| Forming system | Rolling Speed | 10 m/min | |
| Roller Stations | About 26 stations | ||
| Roller Material | 45# Steel with quenching 60mm shaft | ||
| Maim Motor Power | 7.5 kw | ||
| Hydraulic cutting Power | 4 kw | ||
| Cutting | Material Of Cutting | CR12 with quench treatment | |
| system | Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | ||
| Electrical control system | Electric Source | 380V, 50HZ,3 phase | |
| Also can satisfy Customer’s require | |||
| Control System | PLC (Panasonic) as list in the note | ||
| Weight | About 3.5 tons | ||
| Way Of Drive | 1 inch single chain | ||
| Size of machine | Length 10500mm* Width 600mm* Height 1000mm |
Working flow of steel frame roll forming machine
Decoiler(passive/auto) → Guiding → Leveling and feeding → Continuous punching → Door frame forming machine → Length measurement and cutting → Collecting.

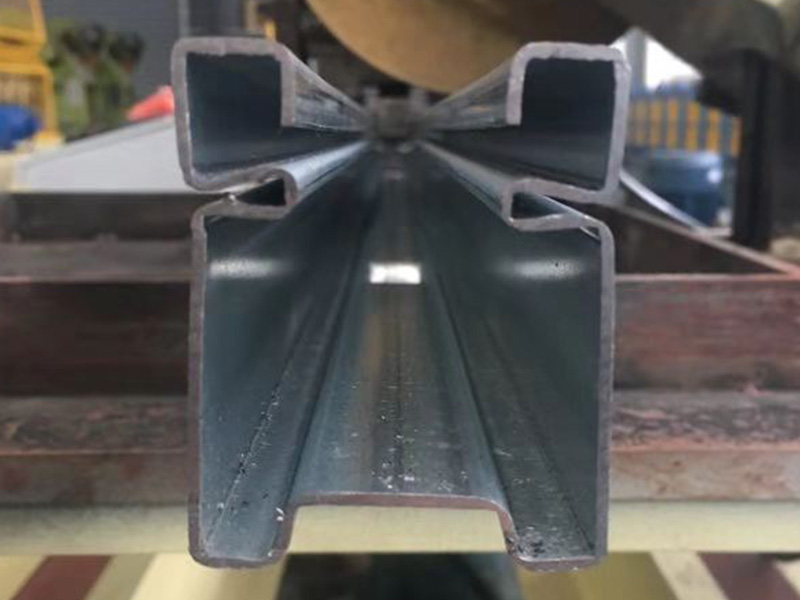

A metal door frame is a type of metal material used to secure and support doors and windows. It is typically installed on the walls of buildings, providing a stable mounting base for doors and windows. It effectively enhances the connection strength between doors, windows, and walls, improving the overall structural stability and security.
