The container beam forming machine has the advantages of high efficiency, high precision, great strength, even distribution of stress across each pass, and simple roll profile curves.
5.5KW 20 Stations Flat Pack Container House Bottom Beam Cold Roll Forming Machine
| No. | Item | Specification |
| 1 | Decoiler | 5T Manual decoiler |
| 2 | Mill bed material | 450 H steel welding |
| 3 | Feeding platform type | Side roller type |
| 4 | Transmission method | Gearbox drive |
| 5 | Side wall thickness | 20mm |
| 6 | Shaft diameter | 95mm diameter with solid shaft |
| 7 | Main motor power | 2*18.5kw |
| 8 | Machine speed | 8-10m/min |
| 9 | Forming stations | 20 stations |
| 10 | Shaft material | GCR 15 with heat treatment |
| 11 | Cutting blade material | CR 12Mov |
| 12 | Pump station power | 5.5 kw |
| 13 | Raw material Thickness | 2.5-4.0mm |
| 14 | Length sizing accuracy | +/- 2mm |
| 15 | lacing hole mold | One set |
Main Components
| Machine name | Quantity |
| 5T passive uncoiler | 1 set |

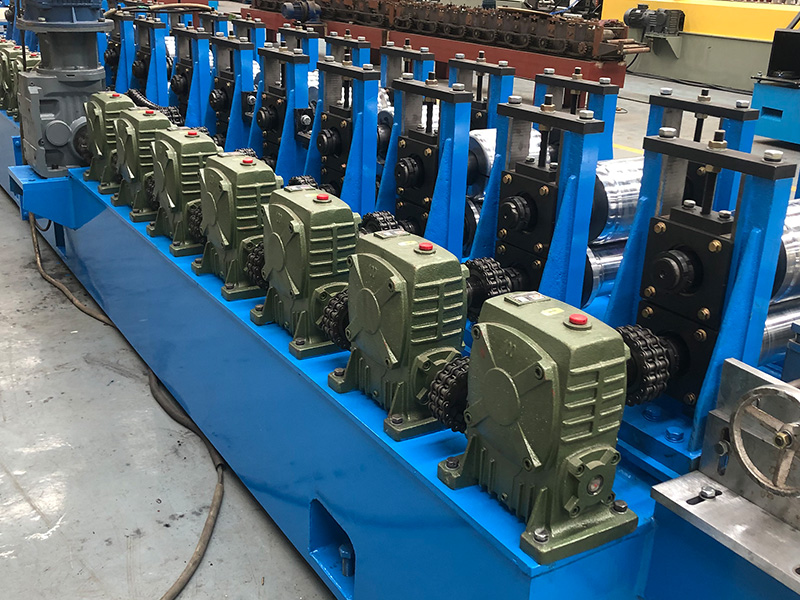

| Main roll forming system | 1 set |

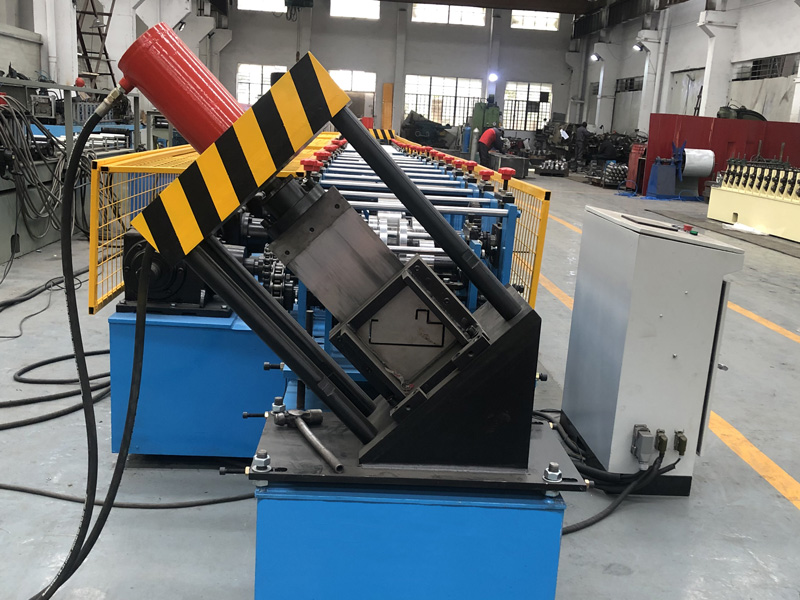

| Hydraulic stop cutting system | 1 set |
| 4 meters out tables | 1 ste |
| PLC control box system | 1 set |
| Tool box | 1 package |
Working flow of Container Beam Roll Forming Machine
Uncoiling—Feeding&Leveling—roll forming machine—Cutting—Products collecting

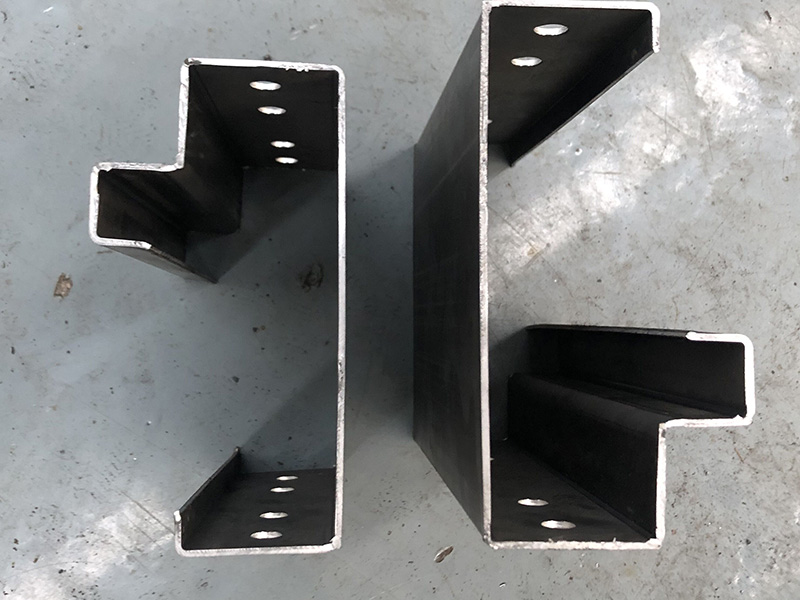

The container main beam is one of the primary structures of container vehicles, designed to support containers, transfer the container's weight and forces generated during vehicle movement, and connect various vehicle components. It ensures the safe and stable transportation of containers. The material, dimensions, and processing techniques of the main beam are critical factors in guaranteeing the safety of container transport.
