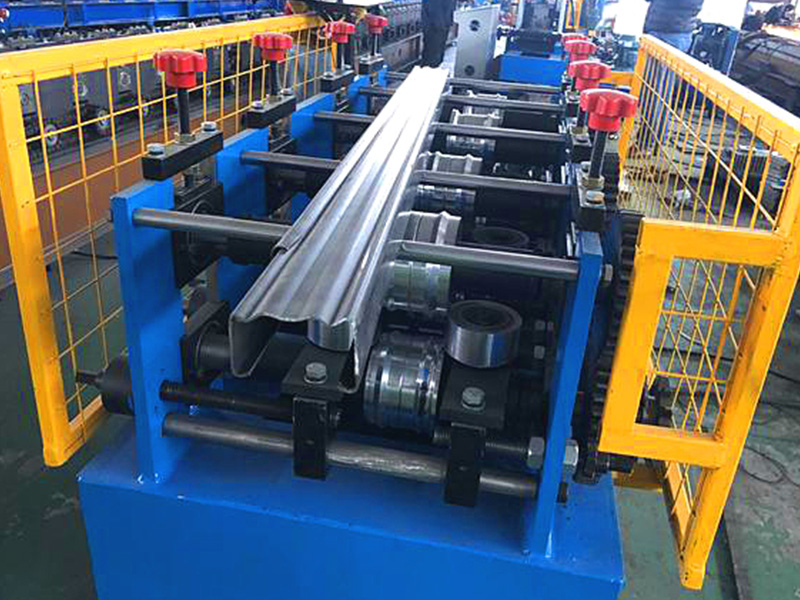

The beam box roll forming machine is a device used for producing shelf crossbeams. It is driven by a motor and a gear chain, which drives the main shaft to rotate the rollers. The fed metal sheet is continuously rolled and formed, gradually processing the sheet into the desired shape of the shelf crossbeam.
The forming speed of the box profile roll forming machine is 16-20m/min, which can quickly process metal sheets into shelf crossbeams with high production efficiency. The use of PLC control cabinets has achieved automation and can also ensure the dimensional and shape accuracy of the shelf crossbeam, meeting the assembly requirements of different shelves.
| Forming speed: | 0~15M/Min |
| Product speed: | 8~10M/min |
| Roller material: | GCR15 bearing steel |
| Forming stations: | 15 stations + 4 folded machine |
| Shaft diameter: | 75mm |
| Shaft material: | 40Cr，chrome-plated |
| Forming structure: | Guiding column,chrome-plated |
| Machine base frame: | tube welding structure ,milling gauntry,punch holes automatic |
| Transmission type: | chain |
| Motor power of main machine: | 15KW |
| Bearing: | HRB brand ,needle roll bearing, taper bearing |
| Bolt: | 8.8 grades |
| Weight ： | about 8 tons |

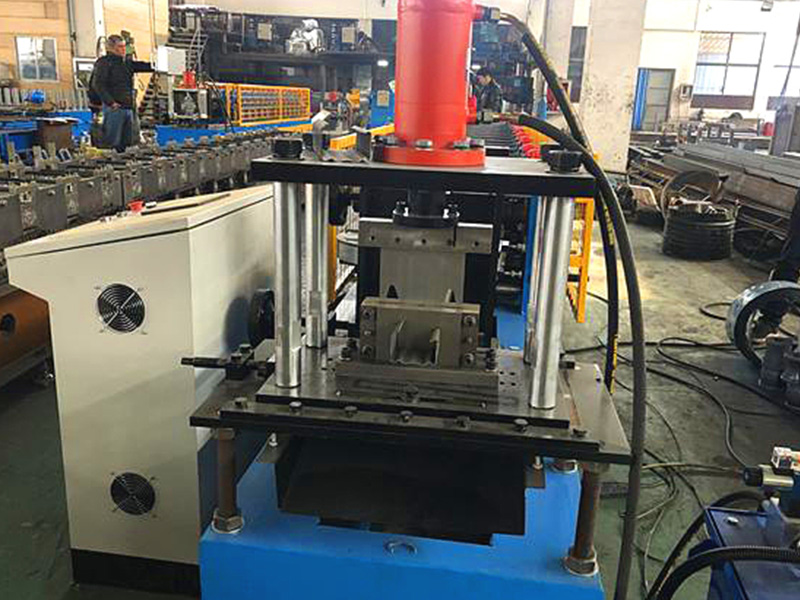

| Cutting device : | Cutting die : Cr12MoV |
Working flow of Racking Box Beam Machine
Decoiler(passive/auto)—Roll Forming Machine—Servo Following Cutting

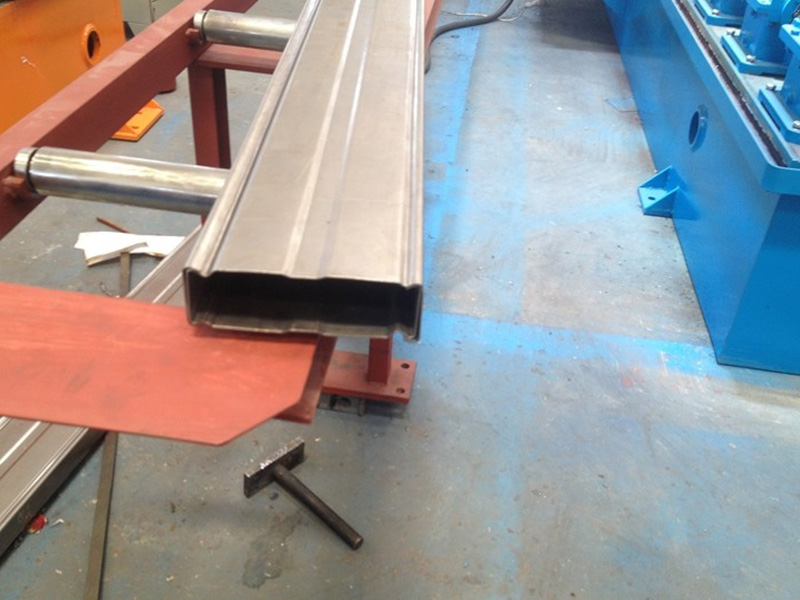

Shelf crossbeams are widely used in storage warehouses, supermarkets, shopping malls, and large and small shopping centers, suitable for various types of shelves, such as light shelves, medium shelves, heavy shelves, etc
